23L Portable Car Refrigerator with Display

Description

The weather is so hot, so bring a portable compressor refrigerator to always have cool drinks to quench your thirst. With a 23L capacity, it can accommodate enough drinks and snacks without taking up too much space in the car. It also provides two modes, fast cooling and energy-saving mode, so that your food will always stay fresh and not easy to spoil. With a digital display, you can easily adjust the temperature or lock it. With voltage protection, you can use it safely and enjoy a pleasant road trip.

Features

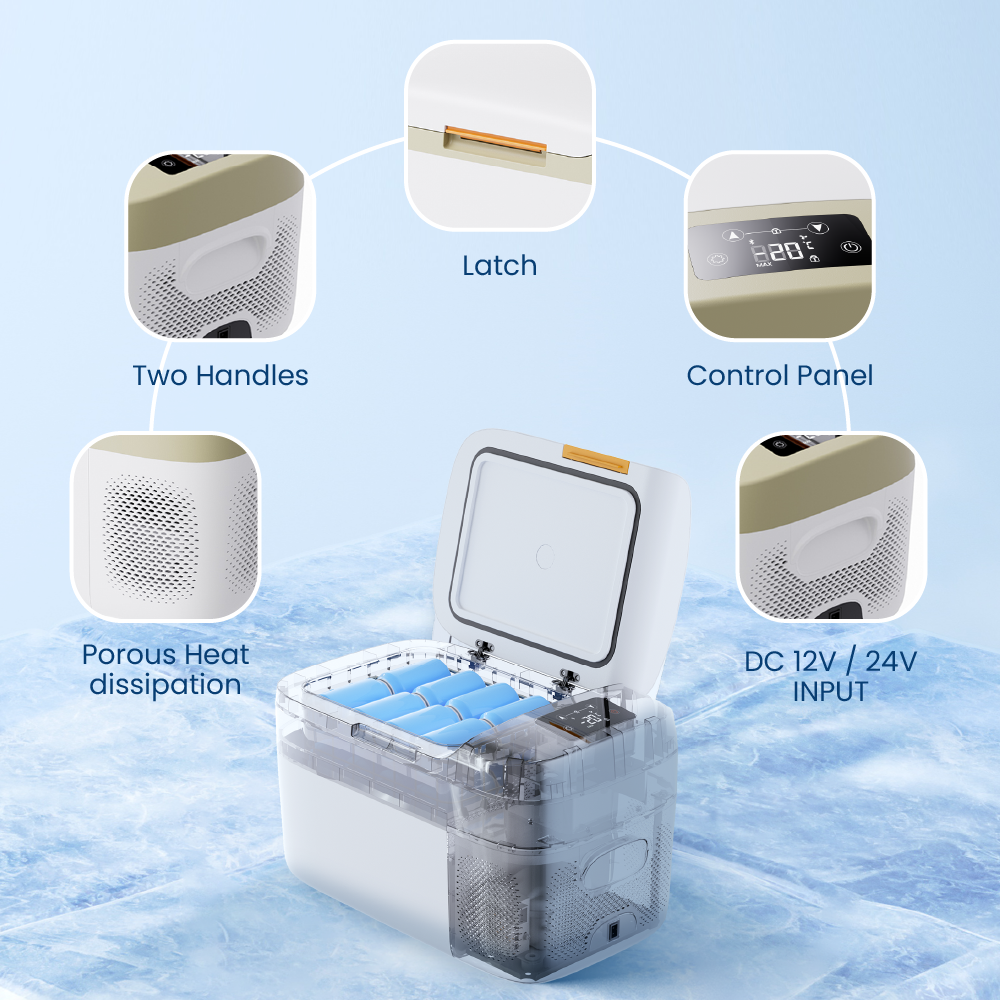

• Conveniently control the refrigerator via Bluetooth or manual settings
• Strong sealing keeps the cold air in and prevents leaks
• Built-in handle makes it easy to carry and transport wherever you go

Specifications

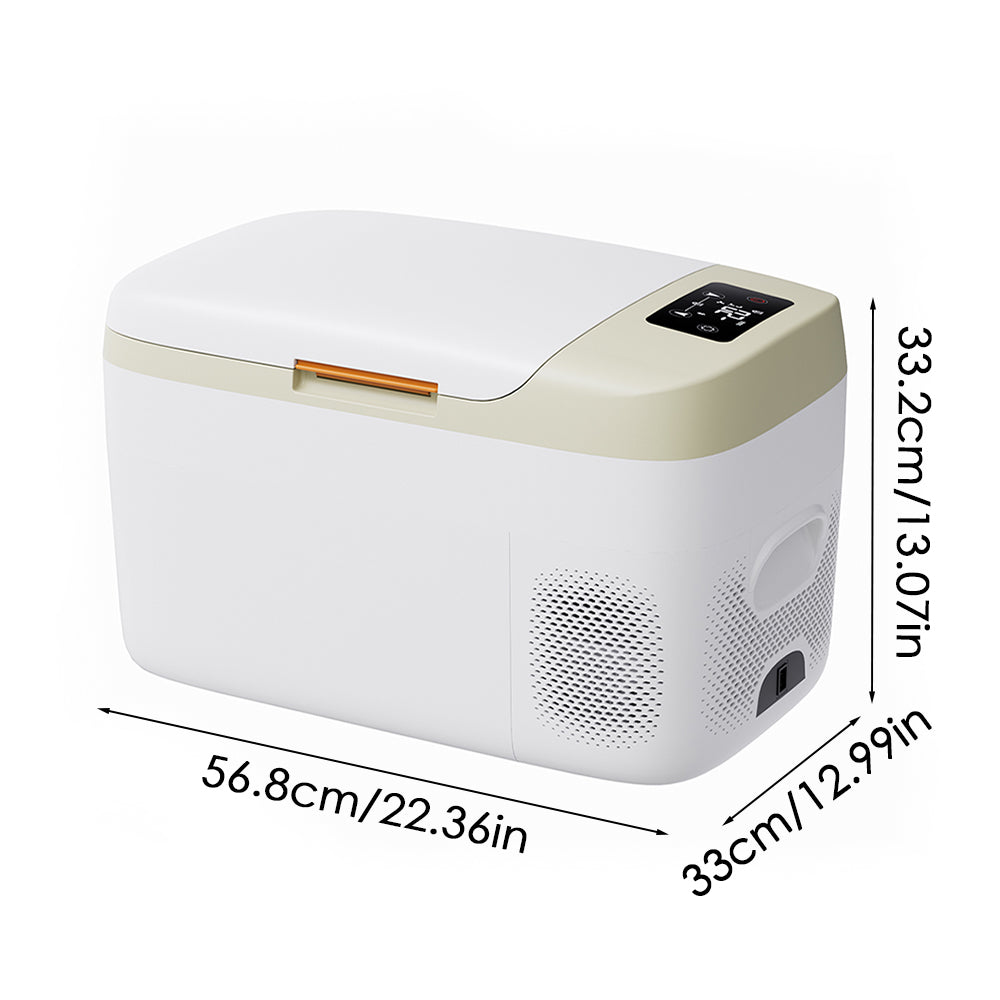

Overall Dimensions: 56.8cm W x 33cm D x 33.2cm H

Colour: White+Green

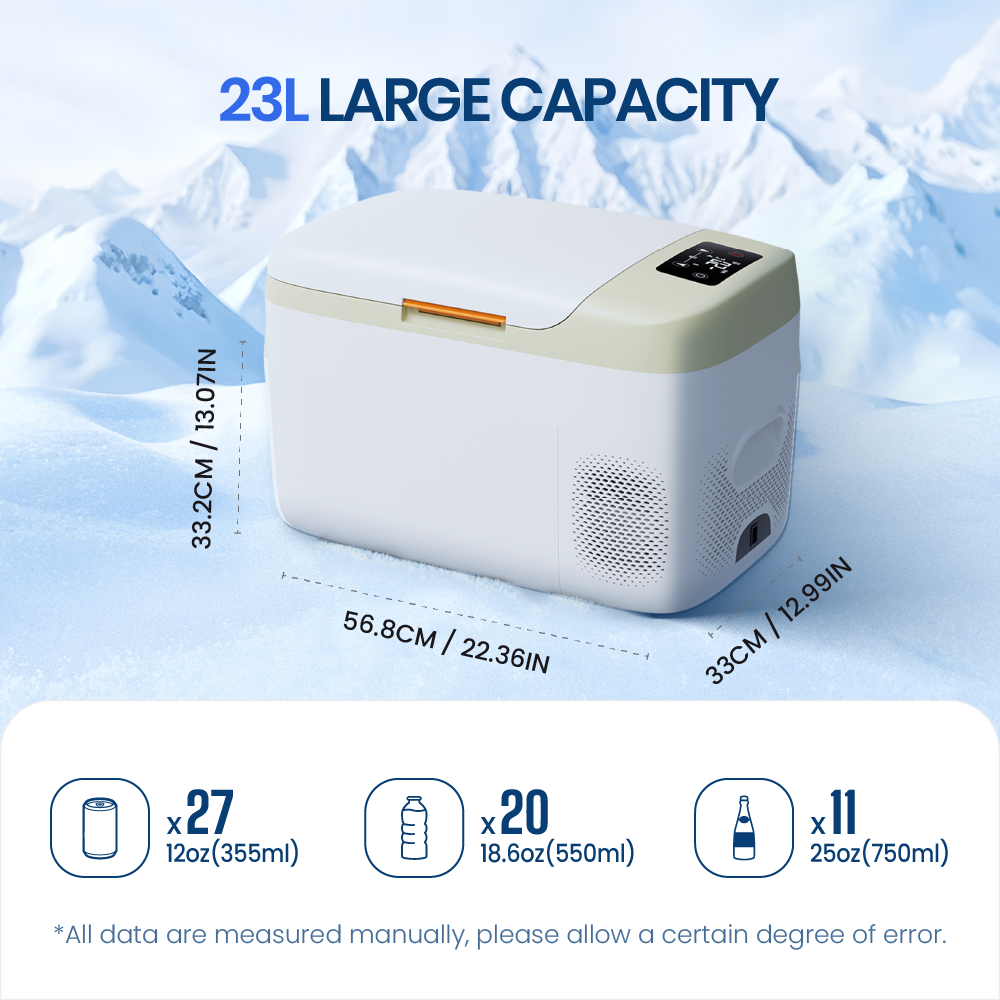

Capacity: 23L

Material: ABS+PP

Range: -20℃~+20℃(32℃)

Power: 45W（±20%）

Voltage: DC 12V/24V

Noise: ≤45dB

Cooling: Compressor

Package Included

1 x Portable Refrigerator

Package Specifications

Package Dimensions (WxDxH): 620 x 390 x 400cm

Gross Weight: 10kg

Safety Cautions

• Do not touch power cords, power sockets, or power strips with wet hands.
• Have a professional install the refrigerator if using it in cars, RVs, or yachts.
• Ensure the power supply lines and fuses are suitable and that the power is connected correctly.
• Do not expose the refrigerator to rain or strong sunlight for extended periods.
• Place the refrigerator in a well-ventilated area to ensure proper heat dissipation. Maintain at least a 100 mm gap between the cooling vents and other objects.
• Use the refrigerator on a flat surface to maintain its efficiency and prolong its service life.

Operation Guide

Start-Up: Connect to DC 12V/24V power. Hold the power button for 3 seconds to start. The display shows the current temperature and mode.

Shut-Down: Hold the power button for 3 seconds to stop while the keyboard is unlocked.

Lock: Hold the up button for 6 seconds. The child lock icon will light up. The keyboard locks automatically after 20 seconds of inactivity.

Unlock: Hold the down button for 6 seconds.

Adjust Temperature: Press the up/down button to change the set temperature (increments of 1℃). Hold the button for quick adjustment. The set value saves automatically after 5 seconds of inactivity.

Switch Modes: Press the set button to toggle between "ECO" and "MAX".

Low Voltage Protection: Automatically stops the compressor if battery voltage is too low, indicated by the "E1" code. Resumes normal operation when voltage stabilizes.

Note: For more detailed instructions and Bluetooth function please refer to the user manual.
